NMEA 2000 Depth, Speed & Temperature Data from a DST-2

To get NMEA 2000 data from your legacy depth, speed or temperature instruments you may wish to use a DST-2 connected to the input of an NGW-1.

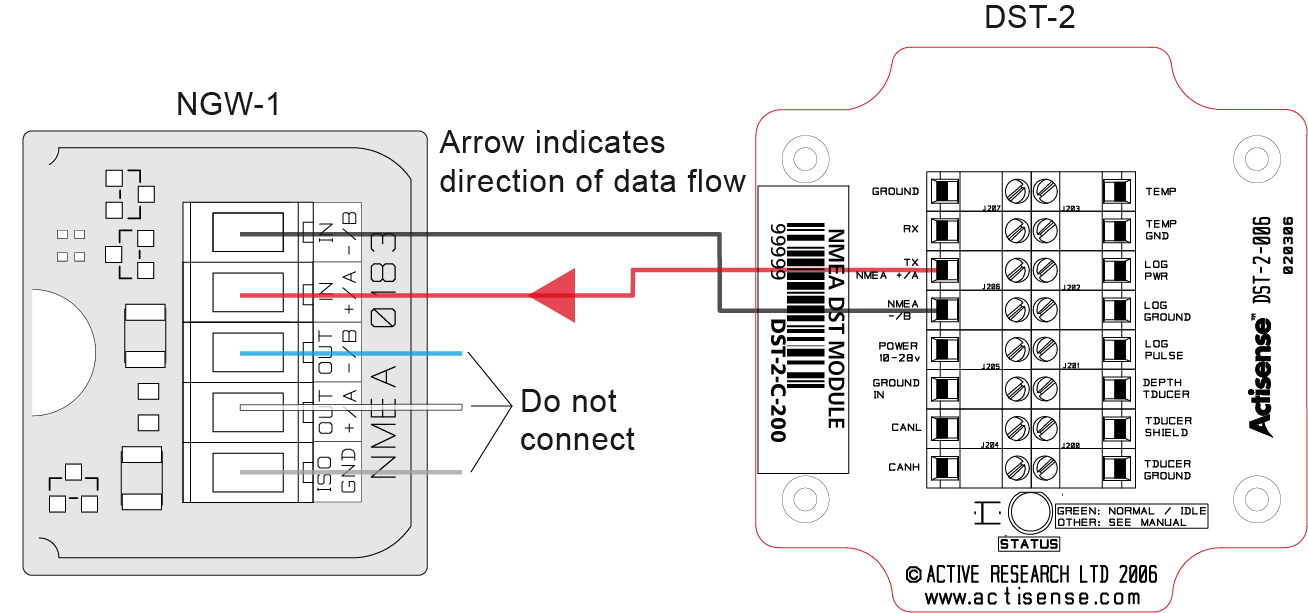

Here's how to connect the two together:
